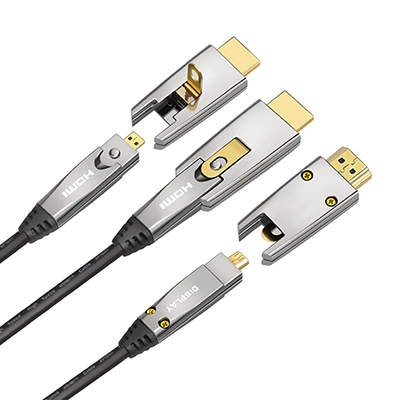

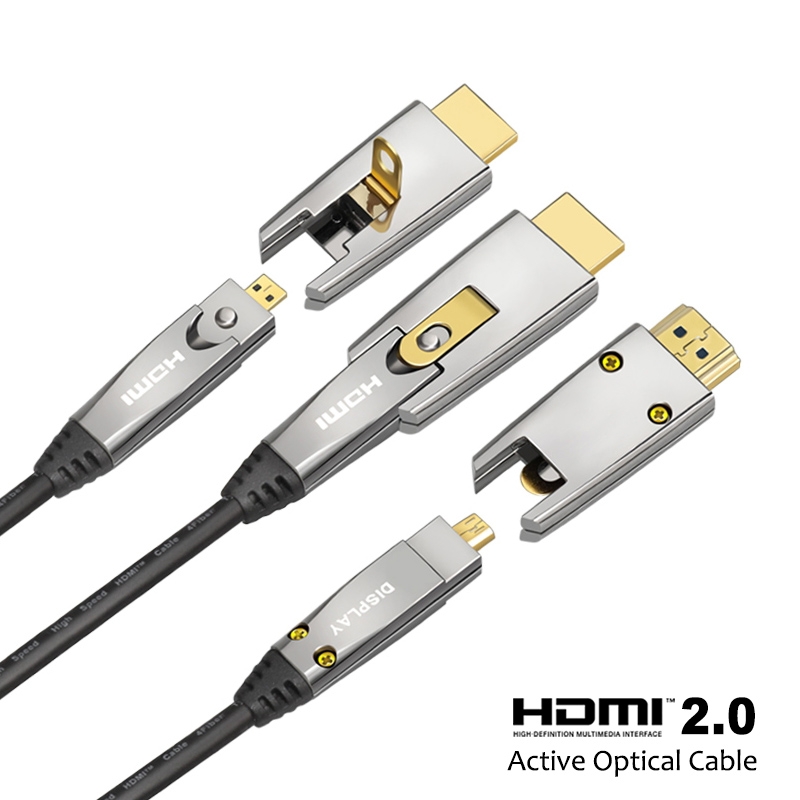

HDMI 2.0 Active Fiber Optical (AOC) DM TO DM 20~100Meters


Key Features:

  • Extend HDMI up to 300M over fiber optics
  • Plug and play,no external power supply or signal yamplifier
  • Compliant to link with all HDMI A type connector
  • Low power consumption
  • Longer,thinner cable without EMI/RFI emissions
  • Proven 850nm VCSEL array technology
  • Compliant with HDMI 1.4 and 2.0 specification
  • 18Gbps bandwidth and 4K@60HZ with HDR

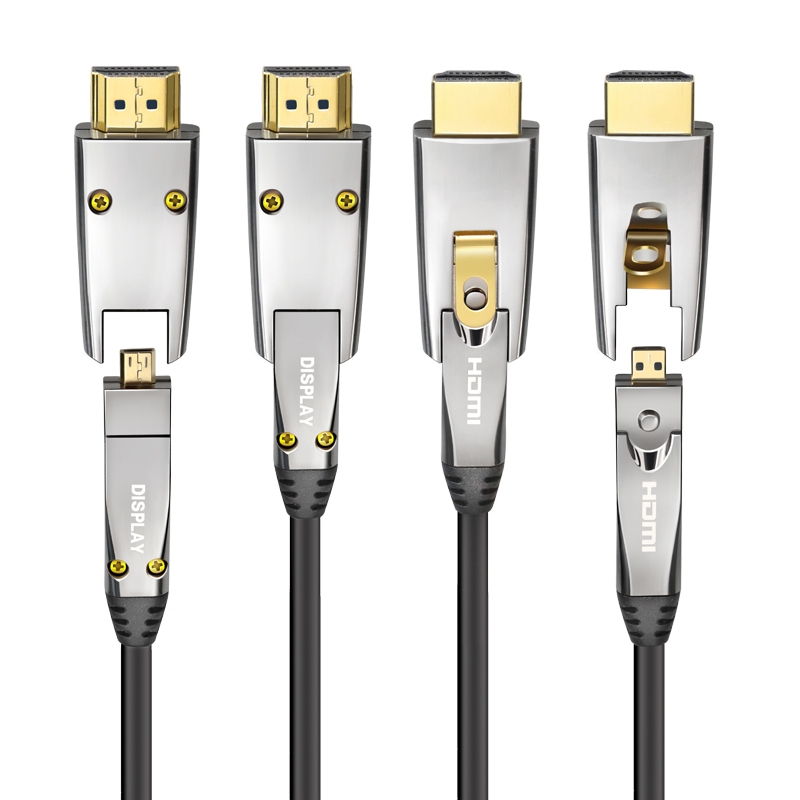

  • HDMI Type D to Type D
  • CE/FCC Compliant







We provide OEM and ODM services
Contact Us ☎ +886-2-8228-1638

Detail

Products:

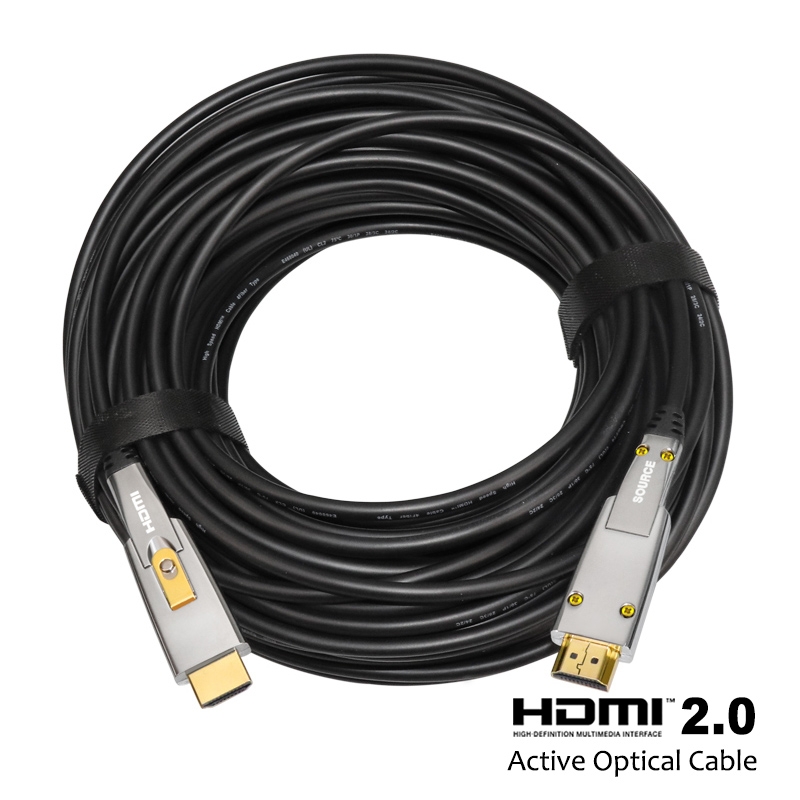

HDMI 2.0 AOC CABLE

HDMI 2.0 active optical cable(AOC) is used to extend the transmission distance between HDMI source and sink devices.

The transmission distance can be up to 150M (492ft) through a hybrid cable consisting of optical fibers and copper wires.The high-speed TMDS signals are transmitted through the optical multimode fibers,while the low frequency control signals are transmitted through the copper wire.

To support the new HDMI2.0 specification,HDMI 2.0 AOC is now compliant with Blu-ray players and TV sets supporting 4K display resolutions that are going to come to the market.

With advanced optical engine embedded,it is feasible to connect any HDMI devices such as Blu-way,dvd,projectors,video games,computers and mobile to enjoy the high quality display.



General specifications:

1. Support version:HDMI 1.4 and 2.0
2. Plug and play,no external power supply or signal amplifier
3. Support 18 Gbps bandwidth (single channel 6 Gbps)
4. Support  4:4:4 4K@60Hz 3D
5. Support HDCP/EDID/CEC/DDC
6. Supply voltage:5.0V
7. Power Consumption:≤250mmW
8. Cable:Hybrid type with 50/125um fiber and copper wire OD:4.0-5.2mm
9. Cable length:10m/15m/20m/25m/30m/50m/60m/80m/100m/150m/Customize



Product application :

1. Digital Signage
2. LED signboards in streets and in stadiums
3. Medical Imaging Equipment
4. Airplane On-board Video System
5. Home Theater,Projector
6. Blue-ray, 3D video, Set-up box, DVR, Game Consoles and Computer
8. TV Broadcast Station
9. Conference Room Video Equipment
10. Security systems
11. Engineering wiring systems

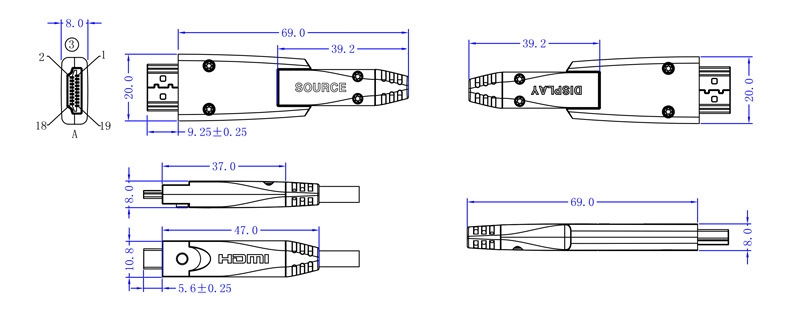

Cable mechanical and environmental performance :

1. Tensile Resistance:Long term 200N, Short term 300N
2. Pressure Resistance:Long term 2000N/10cm, Short term 3000N/10cm
3. Cable Bending Radius ≥ 10mm X 1 turn
4. Operating Temperature -20~ 70°c

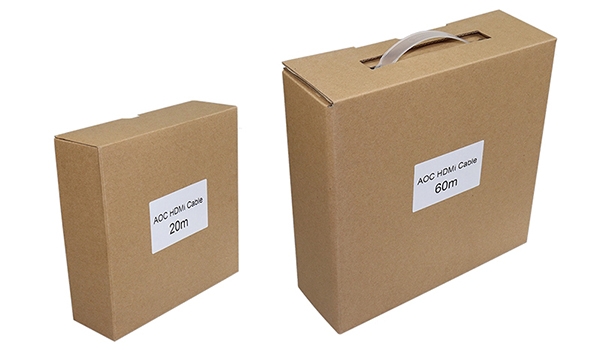

Packaging & Delivery

◀Packaging Details

Length:  5-30Meters
Carton size:  210x210x50mm

Length:  31-60Meters
Carton size:  240x240x100mm(Portable)

Length:  61-100Meters
Carton size:260x280x100mm(Portable)

Length:  101-150Meters
Carton size
:  280x280x100mm(Portable)
